LG 62102 201 MWO-S Parts List

*01

3828W5A2473 LG Owner's Manual Backorder LGE 3828W5A2473 $37.50

View on Model

*02

MANUAL,SERVICE LGE 3828W5S2189 Contact Us For Availability

View on Model

*05

LABEL,COOKING GUIDE LGE 3850W1D065A Contact Us For Availability

View on Model

*07

CARD,TECHNICAL LGE 3840W1T0041 Contact Us For Availability

View on Model

*10

LGE 3890W3C121A LGE 3890W3C121A Contact Us For Availability

View on Model

1006

LATCH LGE 4026W2A024A Contact Us For Availability

View on Model

3002

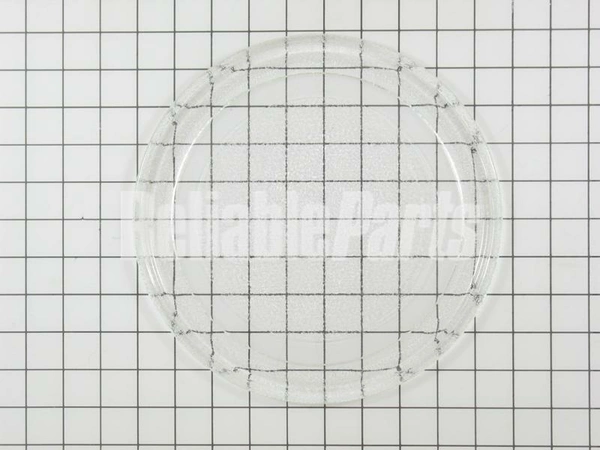

3390W1G005E LG Glass Tray Backorder LGE 3390W1G005E $23.86

View on Model

3003

LGE 3461W0A041D LGE 3461W0A041D Contact Us For Availability

View on Model

3008

ROTATING RING ASSEMBLY LGE 5889W2A013E Contact Us For Availability

View on Model

3009

6549W1S011B LG Microwave Oven Synchronous Tur In Stock LGE 6549W1S011B $20.09

View on Model

3034

3052W1A002A LG Microwave Resin Cover Backorder LGE 3052W1A002A $6.11

View on Model

4000

BOARD,[LATCH BOARD] LGE 3500W1A011A Contact Us For Availability

View on Model

4002

6600W1K001D LG Microwave Oven Door Micro Swit Backorder LGE 6600W1K001D $9.72

View on Model

4003

6600W1K003C LG Switch Backorder LGE 6600W1K003C $5.33

View on Model

4004

4510W3A012A LG Lever Backorder LGE 4510W3A012A $6.11

View on Model

5000

CAPACITOR,[HIGH VOLT LGE 0CZZW1H001L Contact Us For Availability

View on Model

5001

3B74133P LG Time Delay Fuse Backorder LGE 3B74133P $6.11

View on Model

5002

4810W1A009B LG Capacitor Bracket Backorder LGE 4810W1A009B $6.11

View on Model

5003

GUIDE,SUCTION LGE 4974W1A001B Contact Us For Availability

View on Model

5006

5208W1A013A LG Duct Backorder LGE 5208W1A013A $6.11

View on Model

5007

5900W1A004A LG Fan Propeller Backorder LGE 5900W1A004A $6.11

View on Model

5008

6170W1D067A LG High Voltage Transformer Backorder LGE 6170W1D067A $169.01

View on Model

5009

6324W1A004B LG Magnetron Backorder LGE 6324W1A004B $132.54

View on Model

5010

POWER CORD ASSEMBLY LGE 6411W1A036N Contact Us For Availability

View on Model

5012

MOTOR(CIRC),FAN LGE 6549W1F005P Contact Us For Availability

View on Model

5014

HARNESS LGE 6877W1A227N Contact Us For Availability

View on Model

5015

6912W3B002K LG Microwave Incandescent Light B In Stock LGE 6912W3B002K $9.72

View on Model

5016

6930W1A003A LG Microwave Thermostat Backorder LGE 6930W1A003A $9.72

View on Model

5018

6021W3B001V LG Microwave Oven High Voltage Di In Stock LGE 6021W3B001V $7.56

View on Model

5041

FILTER ASSEMBLY(CIRC) LGE 6201W1A014C Contact Us For Availability

View on Model

6000

BASE PLATE LGE 3302W1A054E Contact Us For Availability

View on Model

6001

BASE PLATE ASSEMBLY LGE 3303W1A052D Contact Us For Availability

View on Model

6007

5006W3A019A LG Cap-Base Plate Backorder LGE 5006W3A019A $6.11

View on Model

9001

3B72244S LG Damper Backorder LGE 3B72244S $6.11

View on Model

BZ1

BUZZER,PIEZO CERAMIC LGE 6908W3YA01B Contact Us For Availability

View on Model

CU1

CUSHION LGE 4850W4C001G Contact Us For Availability

View on Model

PT1

6170W2G016A LG Power Transformer Backorder LGE 6170W2G016A $23.86

View on Model

W101

1SBF0402418 LG Laptop Screw Backorder LGE 1SBF0402418 $6.11

View on Model

W102

4B70188C LG Customized Screw Backorder LGE 4B70188C $6.11

View on Model

W105

1TPL0402418 LG Tapping Screw Backorder LGE 1TPL0402418 $14.57

View on Model

W108

1TTL0402418 LG Microwave Tapping Screw Backorder LGE 1TTL0402418 $4.74

View on Model

W109

1TTL0402818 LG Oven Microwave Tapping Screw Backorder LGE 1TTL0402818 $6.11

View on Model

W110

1TTL0403818 LG Tapping Screw Backorder LGE 1TTL0403818 $6.11

View on Model

W118

1TTG0402422 LG Tapping Screw MA-117 Backorder LGE 1TTG0402422 $6.11

View on Model

W208

1EBF0402494 LG TAPTITE Screw Backorder LGE 1EBF0402494 $6.11

View on Model

Model LG 62102 201 MWO-S – Common Parts & Diagrams

Common parts from model LG 62102 201 MWO-S
